AA3003 H18 Aluminium Honeycomb Panels 25mm Thick PVDF Surface Coating

Brand Name : OEM

Model Number : WDF-AHP

Certification : ISO

Place of Origin : CHINA

MOQ : 100sqm

Price : 20-40USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 500 pieces per month

Delivery Time : About 15 Days After Receiving The Deposit(Based On The Quantity)

Packaging Details : Standard shipping package

Standard Size : 1220*2440mm

Application : Building Facade

Panel thickness : 5-100mm

Surface Treatment : PVDF,PE,Powder Coating, Anodized, etc.

Material : Aluminum

Regular Thickness : 10/12/15/20/25 mm

Core : alumnium Honeycomb

Length : Max 10m

Contact Now

Aluminum Honeycomb Panel 25mm Thick With 1.0mm Aluminum Sheet

Basic info of Aluminum Honeycomb Panel

Aluminium Honeycomb Panels are lightweight but incredibly strong composite panels which deliver rigidity and flatness with minimal increase in weight.The aluminium honeycomb core used to manufacture the panels keeps the two aluminium alloy skins in position, resists shear forces, and provides insulation, while the two aluminium alloy skins provide durability, weather and impact resistance, and resist in-plane forces of tension and compression.The panels are manufactured with aluminium honeycomb cells.

Aluminium Honeycomb Panels are suitable for applications in engineering, furniture, transport, recreational vehicles, lift cladding, architectural, interiors & exteriors.

Various customer dimensions and thicknesses are available. Please contact us for a tailored quote based on your project requirements.

Specifications Of Aluminum Honeycomb Panel

Aluminum Alloy	AA3003 H18, AA5052 H18
Panel Thickness	4mm, 8mm, 10mm, 15mm, 25mm,32mm Max 500mm
Aluminum Skin Thickness	0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm
Surface Coating:	PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc
Width	1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm
Length	2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Honeycomb Core Thickness	0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.12mm
Honeycomb Core Cell Size	Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m)
Honeycomb Core Cell Side Length	Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm
Edge Type	Open Edge, Close Edge or customer's design

Product Benefits

Lightweight
Durable and robust
Rigid
High strength-to-weight ratio
Cost effective
Fire resistant
Excellent compression and shear properties
High impact resistance
Good sound proofing properties
Environmentally friendly
High production efficiency
Dimensional stability

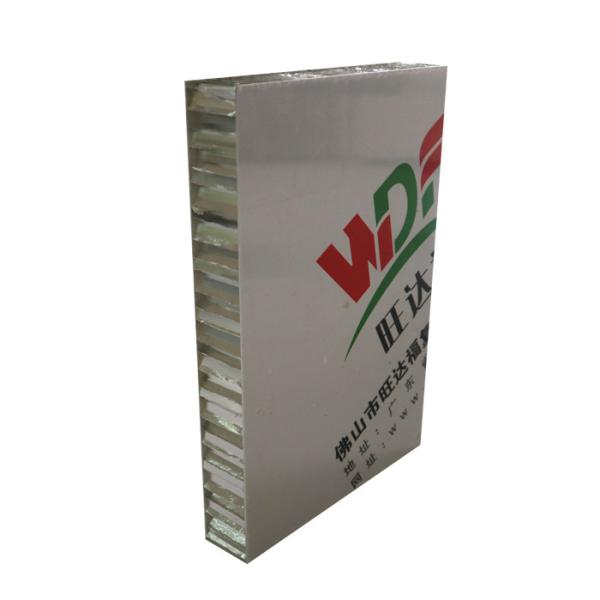

AA3003 H18 Aluminium Honeycomb Panels 25mm Thick PVDF Surface Coating

Packing&Delivery

AA3003 H18 Aluminium Honeycomb Panels 25mm Thick PVDF Surface Coating

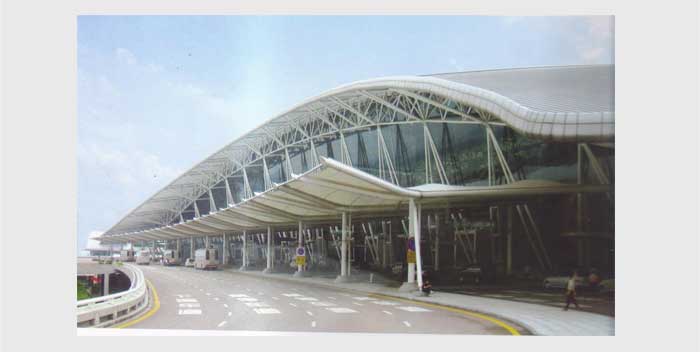

Show Case

Our factory
